How It Works

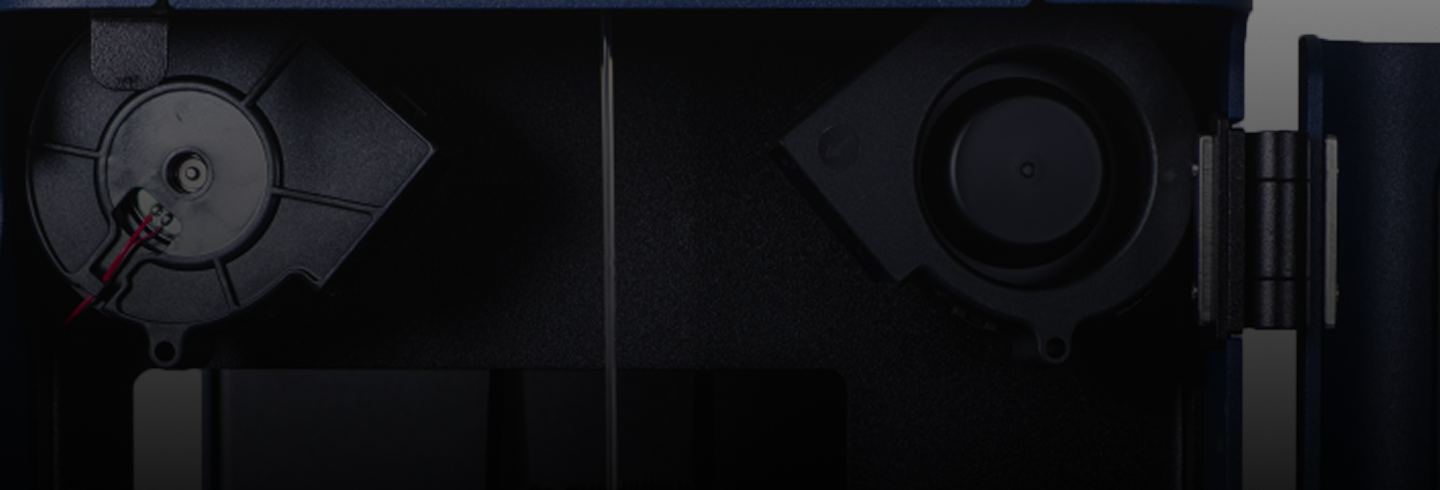

The Filament Maker TWO operates as a closed-loop extrusion system that transforms raw materials into high-density FDM filament through a precise, automated process. The cycle begins at the touchscreen, which utilizes preset-driven machine control to manage parameters based on the specific material profile. From there, an actively cooled, 2.6-liter hopper feeds raw polymers, regrind, or powder into the extrusion drive. Inside the extruder, a nitrided steel alloy screw drives the material through four independent heating zones reaching temperatures up to 450 °C to melt and process the polymer.

Once melted, the polymer is pushed through the nozzle to shape the filament to the selected diameter. As it exits, an optical, high-speed 3-axis filament sensor monitors dimensions in real time, capturing more than 25 measurements per second at a 10um resolution to ensure strict consistency. Temperature-rated pullers then maintain stable filament movement at temperatures up to 380 °C. Finally, an automatic tensioner regulates winding stability, a positioner guides the strand across the spool width to prevent tangling, and the spooler automatically winds the finished product onto a self-tightening holder supporting capacities up to 3 kg.

Technical Protocol: Moisture Management
Engineering polymers are highly hygroscopic. Extruding damp material causes voiding, structural brittleness, and diameter fluctuations. To ensure correct filament density, all raw inputs must undergo a dedicated thermal dehydration cycle prior to entering the hopper.
